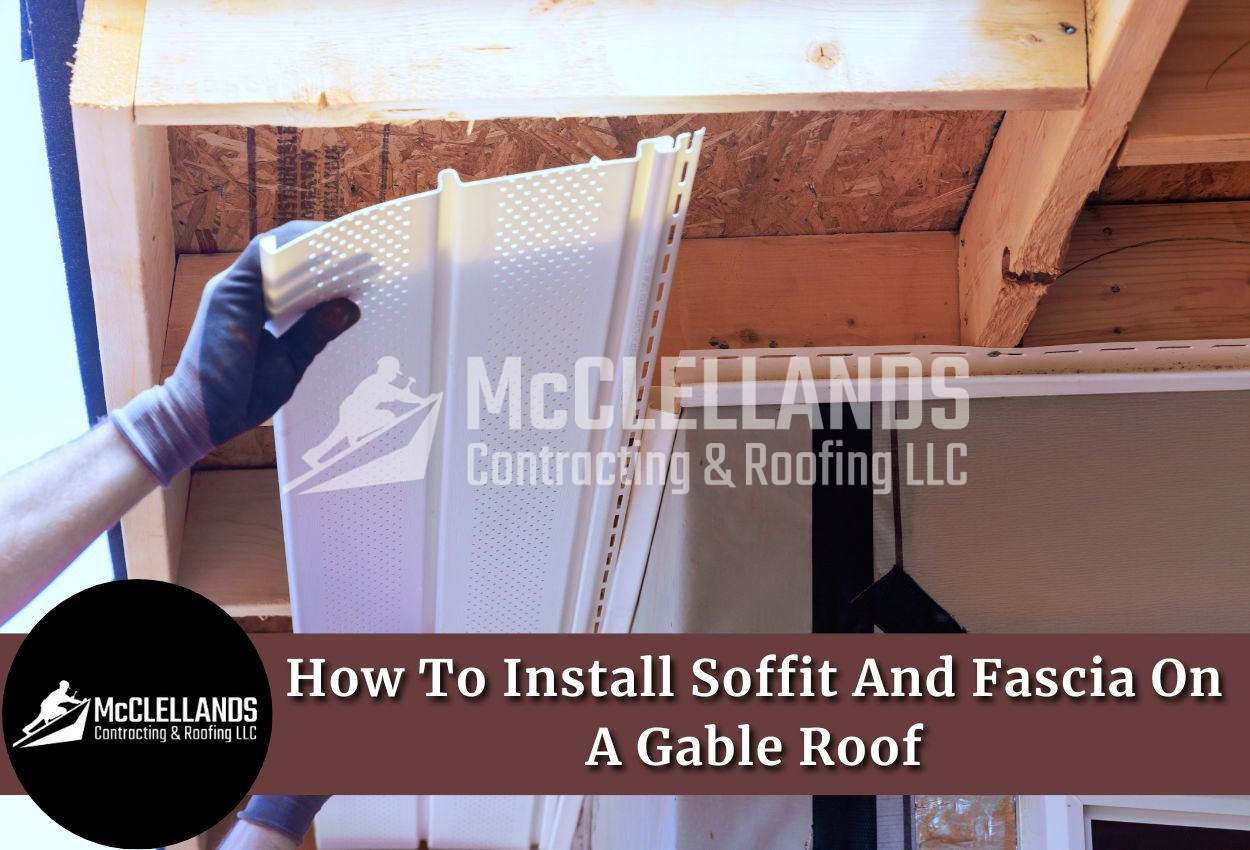

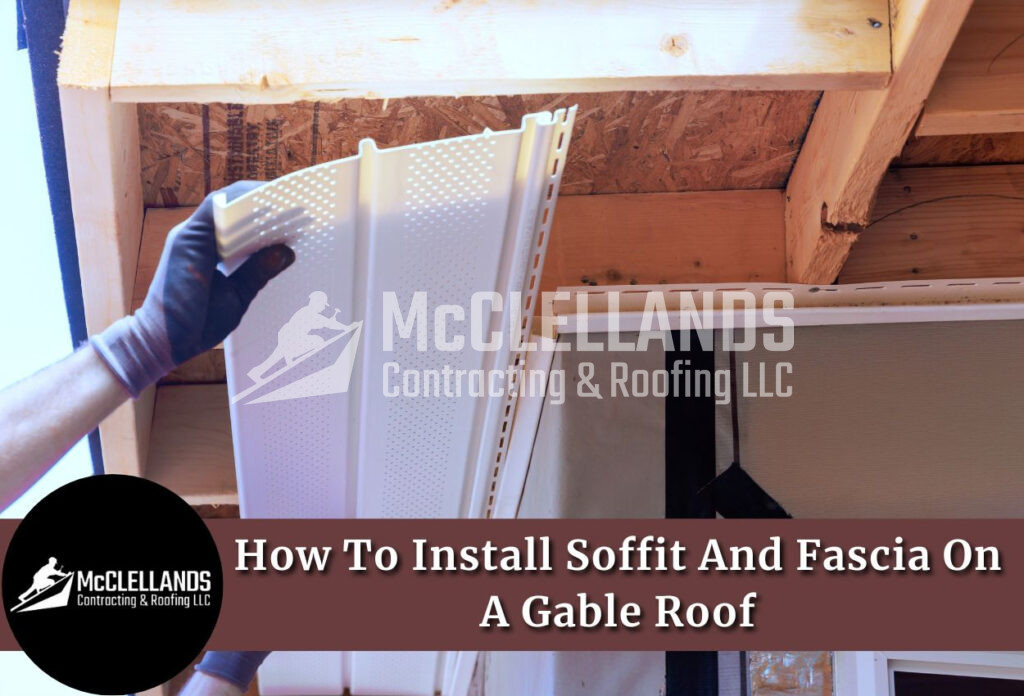

How To Install Soffit And Fascia On A Gable Roof

For residential properties across the U.S., gable roofs are among the most common roofing styles. However, certain installation considerations are needed when installing soffits and fascia on a gable roof.

At McClellands Contracting and Roofing, LLC, we are your local roofers serving Pittsburgh and the surrounding areas of Pennsylvania.

In today's article, we will discuss everything about installing soffit and fascias on a gable roof.

For a no-obligation discussion with our professionals about your roof or home improvement project, feel free to call us today at (412) 353-5660.

How Do You Install Fascia On A Gable Roof

Starting with fascia installation on a gable roof, there are certain steps to follow. We will go over them below.

Materials Required

🔧 Fascia Board: You will need fascia boards in the material of your choice, wood, fiber cement, etc.

🔧 Pre-bent Fascia: This metal covering wraps around the fascia board to provide protection and a finished look.

🔧 Drip Edge: This metal strip is installed at the edge of your roof with the purpose of directing water away from the fascia board.

🔧 Nails: Pre-painted 1¼-inch nails are recommended for securing fascia.

🔧 Basic Tools: You'll need gloves, safety glasses, tin snips, a ladder, measuring tape, and a utility knife.

Installation Steps

#1 Measure and Cut Your Gable-End Fascia

Accurate measurements are critical when installing fascia on gable ends. Begin by measuring the entire length of your gable end from the bottom eave to the peak and then down to the bottom eave on the opposite side.

When cutting pre-bent fascia for your gable end, remember to:

👉 Allow extra length for overlaps at joints (typically 2 inches).

👉 Cut at 45-degree angles where fascia pieces meet at corners.

👉 Score aluminum with a utility knife before bending for sharper edges.

#2 Install the Drip Edge

The drip edge serves multiple important purposes:

👉 It protects the edge of your roof from moisture damage.

👉 It provides support for the shingles to maintain a straight edge.

👉 It helps hold the top of the fascia in place.

Position the drip edge on top of the roof underlayment but under the shingles. If shingles are already in place, carefully slide the drip edge underneath them. Secure it with roofing nails every couple of feet along the top edge.

#3 Attach the Gable-End Fascia

When installing fascia on the gable end, you have to follow some easy but technical steps.

👉 Start at the bottom of one side of the gable end.

👉 Slip the top edge of the pre-bent fascia behind the drip edge.

👉Secure it by nailing through the bottom lip into the fascia board every 16 to 24 inches.

👉 Work your way up to the peak of the gable roof.

👉 When you reach the peak, one piece will overlap the other. Make sure to cut the overlapping piece to align with the rafter angle.

#4 Create Professional Corners and Joints

For a professional finish where the fascia on gable ends meets the horizontal fascia:

👉 Create a 45-degree miter cut at the corner joints.

👉 Bend the metal around corners for a seamless look.

👉 Apply a small amount of exterior-grade caulk at the joints for a watertight seal.

How To Install Soffits On A Gable Roof

Installing a soffit on a gable roof requires careful planning and execution. Here's a guide to properly install gable-end soffits.

Materials Required

🔧 Soffit Panels: Aluminum-vented soffit panels are recommended for excellent airflow. You can choose between solid, perforated, or a combination based on your ventilation needs.

🔧 J-Channel: This trim piece will secure the soffit to the exterior wall. Purchase enough to run along both the wall and fascia board.

🔧 Nailers or Scrap Wood: You'll need these to create support structures for the J-channel.

🔧 Fasteners: Low-profile pan head screws or aluminum trim nails (1-inch length is typically recommended).

🔧 Cutting Tools: A grinder with a metal cutting blade works well for aluminum soffit. Tin snips or aviator snips are also useful.

🔧 Safety Equipment: Heavy gloves to protect against sharp aluminum edges and safety glasses.

🔧 Measuring Tools: Tape measure, speed square, and chalk line for accurate layout.

🔧 Ladder or Scaffolding: Ensure it's rated for your weight and the height required.

🔧 Utility Knife: Helpful for scoring aluminum when making bends.

🔧 Hand-held Folding Tool: This is for making small bends in soffit materials.

Installation Steps

#1 Choose Your Soffit Method First

Before starting, you must decide on a method for completing the eave return at gable ends. There are three main approaches:

👉 Boxed Eave (Pork Chop Eave): This is the simplest method and was popular in cookie-cutter style homes.

👉 Angled Soffit: This provides a sleek, modern appearance.

👉 Flat Soffit: With this method, the soffit ends at the end wall, creating a right angle between the side wall and gable wall soffits.

Your choice will determine the framing and support structures needed for your gable-end soffit installation.

#2 Prepare the Building Structure

Proper preparation of the building structure is essential:

👉 Install nailers (wooden pieces) to support your J-channel along the building's exterior wall.

👉 Ensure all framing is level, square, and properly secured.

👉 Create appropriate supports at corners where the side soffit meets the gable-end soffit

For flat soffit installation, you'll need to install nailers to support the J-channel at the gable end. This allows the J-channel on the side wall and gable wall to line up back-to-back with the soffit installed at right angles.

#3 Install the J-Channel

The J-channel is very important for securing your gable-end soffit:

👉 Measure from the wall to the edge of your fascia board (typically 11 to 12 inches).

👉 Allow about ¼ inch on each side for expansion.

👉 Install the J-channel along the wall with the opening facing outward.

👉 Secure with low-profile pan head screws or nails every 16 inches.

👉 For gable ends, cut the J-channel at 45-degree angles where it meets at corners.

To keep the soffit level, install the top edge of the J-channel level with the bottom edge of the fascia board.

#4 Cut and Install Soffit Panels

When installing soffit on gable ends:

👉 Measure the distance from the wall to the fascia edge, allowing ¼ inch for expansion.

👉 Cut your soffit panels to size (a grinder with a metal cutting blade works well for aluminum soffit).

👉 Insert the first panel into the J-channel ensuring it's square to the wall.

👉 Secure it to the fascia board with trim nails through the flange.

👉 Continue adding panels, connecting each new panel's tongue to the previous panel's groove.

👉 Check periodically to make sure panels remain square.

When you reach the peak of the gable end, you may need to custom-cut the final piece to fit the triangular space.

#5 Ensure Proper Ventilation

For gable-end soffit installations, ventilation is important:

👉 Use vented soffit panels to allow airflow into the building.

👉 Ensure vents are positioned correctly to create proper air circulation.

👉 Consider using a combination of solid and vented panels based on your ventilation needs.

Also Read: Understanding Soffit Repair: Causes, Solutions, Prevention

What Are The Common Mistakes To Avoid While Installing Soffit And Fascia On A Gable Roof?

Even experienced DIYers can make mistakes when installing soffit and fascia on gable ends. Here are the most common ones to avoid:

#1 Incorrect Measurements

Taking accurate measurements is one of the most critical steps. Even small errors can lead to misaligned soffit panels, gaps in your fascia, or wasted materials. Always measure twice and cut once, allowing for proper expansion and overlap at joints.

#2 Neglecting Safety Precautions

Installing soffit and fascia on gable ends often requires working at height. You should never compromise on your safety while performing any roofing work.

Always use proper scaffolding or ladders according to your weight, and wear heavy gloves when handling aluminum with sharp edges. Use safety glasses when cutting materials to protect your eyes.

We recommend hiring a professional if you don't have any prior experience working on a roofing system.

#3 Poor Corner Transitions

The corners where horizontal eaves meet gable ends are often the most visible and challenging parts of the installation.

Take extra time to ensure clean, professional transitions at these points. Poor corner work can lead to water intrusion and will diminish the appearance of your entire project.

#4 Improper Fastening

Using the wrong fasteners or incorrect fastening techniques can result in loosening or warping over time. To avoid this, you should use aluminum nails for aluminum components to prevent galvanic corrosion.

Don't over-drive nails because this can warp the material. Also, make sure that the fasteners go into solid framing, not just the edge of the plywood, and space them consistently according to the manufacturer's recommendations.

#5 Forgetting About Expansion and Contraction

Metal and vinyl materials expand and contract with temperature changes, and ignoring them can result in buckling or gaps. To prevent this, always leave the recommended expansion gap (generally ¼ inch) at the ends of panels.

Never nail the panels too tightly, and follow all the manufacturer guidelines for your specific materials and climate.

Also Read: 12 Soffit And Fascia Mistakes Damaging Your Home

Is It Important To Hire A Professional To Install Soffit & Fascia On A Gable Roof?

Installing soffit and fascia on gable roofs might look simple, but hiring professionals is important for many reasons. Pros bring expertise that prevents costly mistakes.

They know local building codes and handle corners and other difficult areas perfectly. While DIY installation may seem like it will save you money, consider that professionals can finish the work in days, while may take you weeks. Plus, DIYers need to buy specialized tools.

Professional installation protects your home for decades, preventing water damage and pest problems. For most homeowners, the investment in professional installation is worth it for both safety and long-term home protection.
